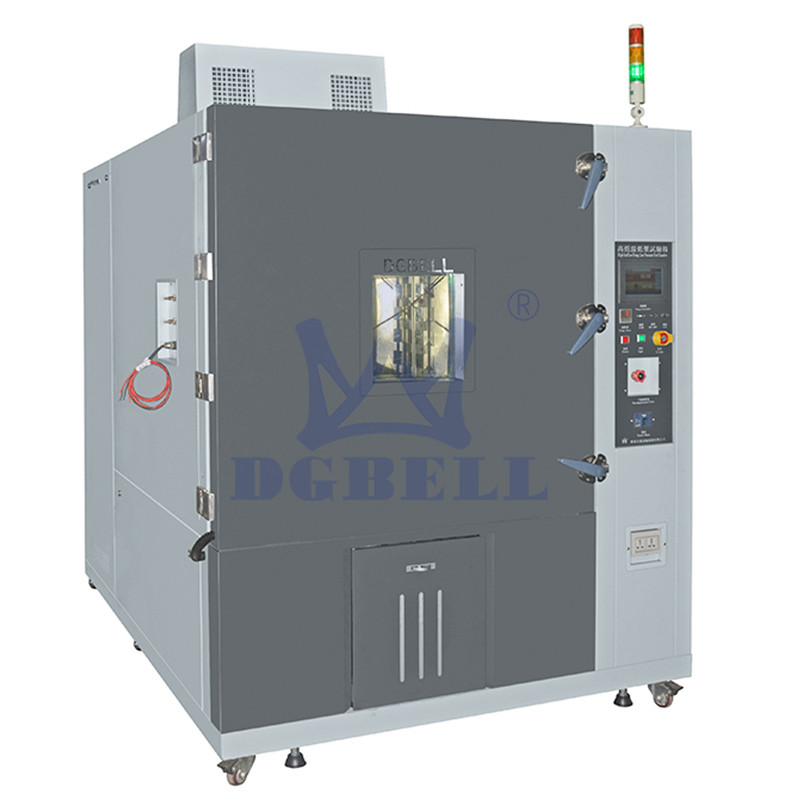

    DGBELL 101KPa-0.5KPa Presure Level High Altitude Simulation Temperature Environmental Combined Test Chamber

    Ask Lasest Price
    Brand Name : DGBELL
    Model Number : BTHQ-225
    Certification : ISO-9001:2015
    Price : negotiation
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 5000+ sets
    • Product Details
    • Company Profile

    DGBELL 101KPa-0.5KPa Presure Level High Altitude Simulation Temperature Environmental Combined Test Chamber

    DGBELL 101KPa-0.5KPa Presure Level High Altitude Simulation Temperature Environmental Combined Test Chamber


    DGBELL’s Combined Altitude & Temperature Environmental Test Chamber is mainly used in aviation, aerospace, electronics, national defense, scientific research and other industrial sectors to determine electrical electronic technology products (including components, materials and instruments).


    The storage and transportation reliability test can be carried out under the single or simultaneous action of high and low temperature and low pressure, and the test piece can be energized to test the electrical performance parameters at the same time.


    An automatically controlled vacuum system provides a precise altitude simulated condition up to 30000 meters. Available to connect the cable to the electronic performance test.

    DGBELL 101KPa-0.5KPa Presure Level High Altitude Simulation Temperature Environmental Combined Test Chamber

    Applications


    This equipment is widely applied to aviation, communication, electronic, etc. industries, instruments and meters, electric products, materials, components and equipment under low air pressure, high temperature, low temperature separate or synchronous simulate environment adaptability and reliability test.


    Features


    With high precision perfect external design, external with double sides cold rolled plate electrostatic powder coated material, internal with SUS#304 high temperature resistant stainless steel. Insulation material adopts fire resistant high strength PU polyurethane foaming thermal insulating material. More than 20% energy saving is achieved thanks to the introduction of Japan & German advanced refrigerator control technology. Control system and control circuit components all with the famous brand.


    Standard Compliance

    • GB/T2423.1-2001 , GB/T2423.2-2001 , GB10590-89 ,GB15091-89 , GB/11159-89

    • GB/T2423.25-1992 , GB/T2423.26-1992 , GJB150.2-86 , GJB150.3-1986, GJB360A


    Performance parameters


    Model

    BTHQ-225

    Test Space

    W x H x D(in)

    23.62x29.53x19.69

    External Dimension

    W x H x D(in)

    42.31x74.8x47.24

    Temp. Range

    B:-68℉~302℉ C:-104℉~302℉ D:-158℉~302℉

    Temp. Fluctuation

    ±32.9(atmospheric ,no load )

    Temp. Deviation

    ≤±35.6(atmospheric ,no load )

    Temp. Uniformity

    ≤±35.6(atmospheric ,no load )

    Cooling Rate

    33.44-34.16/min

    Pressure Level

    101kPa-0.5kPa

    Pressure Reducing Time

    101kPa→1.0kPa≤30min(dry )

    Pressure Deviation

    atmospheric -40kp;±1.8kpa;40kp-4kpa;±4.5%kpa;4kp-0.5kpa;±0.1kpa

    Pressure Recovery Time

    ≤10KPa/min

    Weight

    1500kg


    Pressure Altitude Reference Table


    Setting Pressure

    Altitude

    1.09KPa

    30500m

    2.75KPa

    24400m

    4.43KPa

    21350m

    11.68KPa

    15250m

    19.16KPa

    12200m

    30.06KPa

    9150m

    46.54KPa

    6100m

    57.3 KPa

    4550m

    69.66KPa

    3050m


    FAQ


    Q1 : Can you customize the combined altitude & temperature test chamber ?
    A: Yes, we can customize any products according to requirements. Hot selling lab electronic
    temperature humidity cabinet/Environmental climate test chamber/Car Battery Safety Test Chamber also can be customized.

    Q2 : How to choose the most suitable products?
    A: Our professional team will give you the best suggestion, just be patiently to tell us the information
    about the parameters you require.


    Q3 : Can you arrange installations and commissioning in our lab?
    A: Firstly, for standard chamber we had 3-5 days commissioning before shipping,
    you just need link power in your lab, then you can start to operate.
    Secondly, we had detailed operation manual with chamber , any problems you can find and solve in it.
    Thirdly, some customized chambers we should install and teach your team to operate .
