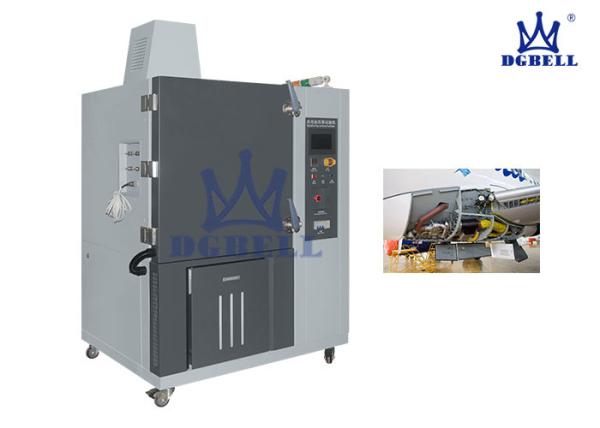

    10KPa/Min Low Pressure Altitude Test Chamber For Aviation

    ≤10KPa/min Pressure Recovery Time Temperature Altitude Test Chamber


    Applications


    This equipment is widely applied to aviation, communication, electronic, etc. industries, instruments and meters, electric products, materials, components and equipment under low air pressure, high temperature, low temperature separate or synchronous simulate environment adaptability and reliability test.


    Features


    With high precision perfect external design, external with double sides cold rolled plate electrostatic powder coated material, internal with SUS#304 high temperature resistant stainless steel. Insulation material adopts fire resistant high strength PU polyurethane foaming thermal insulating material. More than 20% energy saving is achieved thanks to the introduction of Japan & German advanced refrigerator control technology. Control system and control circuit components all with the famous brand.


    Standard Compliance

    • GB/T2423.1-2001 , GB/T2423.2-2001 , GB10590-89 ,GB15091-89 , GB/11159-89

    • GB/T2423.25-1992 , GB/T2423.26-1992 , GJB150.2-86 , GJB150.3-1986, GJB360A


    Performance parameters


    Model

    BTHQ-225

    Test Space

    W x H x D(mm)

    600x750x500

    External Dimension

    W x H x D(mm)

    1100x1900x1200

    Temp. Range

    B:-20~150℃ C:-40~150℃ D:-70~150℃

    Temp. Fluctuation

    ±0.5℃(atmospheric ,no load )

    Temp. Deviation

    ≤±2℃(atmospheric ,no load )

    Temp. Uniformity

    ≤±2℃(atmospheric ,no load )

    Cooling Rate

    0.8-1.2℃/min

    Pressure Level

    101kPa-0.5kPa

    Pressure Reducing Time

    101kPa→1.0kPa≤30min(dry )

    Pressure Deviation

    atmospheric -40kp;±1.8kpa;40kp-4kpa;±4.5%kpa;4kp-0.5kpa;±0.1kpa

    Pressure Recovery Time

    ≤10KPa/min

    Weight

    1500kg


    Pressure Altitude Reference Table


    Setting Pressure

    Altitude

    1.09KPa

    30500m

    2.75KPa

    24400m

    4.43KPa

    21350m

    11.68KPa

    15250m

    19.16KPa

    12200m

    30.06KPa

    9150m

    46.54KPa

    6100m

    57.3 KPa

    4550m

    69.66KPa

    3050m
