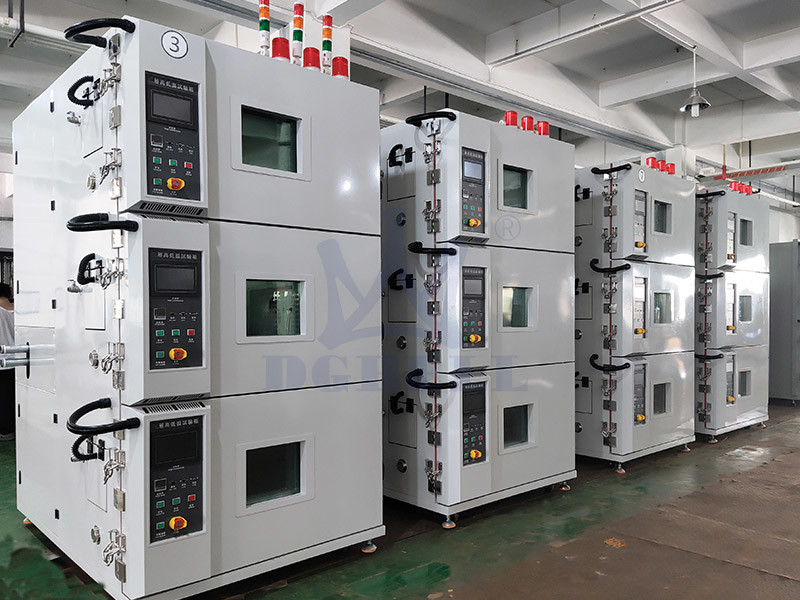

    High And Low Temperature Climatic Test Chamber 3 Decks With Battery Cell

    Ask Lasest Price
    Brand Name : DGBELL
    Model Number : BTT-D3-80/BTT-D3-360
    Certification : CE/ISO
    Price : Negotiation
    Payment Terms : Western Union, T/T, D/P, D/A, L/C
    Supply Ability : 500 Sets per Month
    Delivery Time : Negotiation
    • Product Details
    • Company Profile

    High And Low Temperature Climatic Test Chamber 3 Decks With Battery Cell

    3 Deck High and Low Temperature Climatic Test Chamber Price for Battery Cell


    High And Low Temperature Climatic Test Chamber 3 Decks With Battery Cell


    Modle


    BTT-D3-80

    BTT-D3-360

    Test size(mm)


    W450 xD450x H450

    W1000 xD600x H600


    W130 xD1950x H1150

    W130 xD1950x H1150

    Temperature Range

    B:-20ºC~+150ºC
    C:-40ºC~+150ºC
    D:-60ºC~+150ºC

    Air supply Method


    Forced internal circulation, upper air outlet and lower air return

    Temperature Fluctuation


    ±0.3ºC

    Temperature Rise Rate


    1~3ºC/min on average throughout

    Cooling Rate


    1ºC/minute on average

    Temperature Uniformity


    ≤2ºC

    Temperature Deviation


    ≤1ºC

    Observation Window


    Three-layer vacuum rigidized explosion-proof glass

    Test Holes


    Test holes can be opened on both sides of the box

    Cooling Method


    Optional: air-cooled or water-cooled

    Control Mode

    Touch screen programmable PLC with USB interface, RS485 interface for computer control, special network control software for remote monitoring and data collection.

    Inner Box Material


    Galvanised sheet, powder coated, high temperature plasticised, 1.2MM thickness

    Power Supply Voltage

    AC380V 50HZ

    Safety Protection

    Automatic explosion-proof pressure relief device, explosion-proof chain, three-coloured light alarm device, remote control, smoke extraction device, fire extinguishing device, etc.

    Communication Protocol

    Open communication protocol with charging and discharging machine


    Guangdong Bell battery testing chamber supplier, as the leading manufacturer of battery safety test equipment in China, the earliest enterprise dedicated in the R & D of battery safety test in China since 2005. We provide the overall test equipment solution for both lithium-ion consumer batteries and lithium-ion EV battery packs and modules, which comply with the relevant international test standards, such as IEC 62133, UN 38.3, UL 1642, ECE R100, UL 2580 and IEC 62619.


    DGBELL lithium battery test chamber supplier provides a wide range of battery safety test equipments, from environment simulation test chambers to mechanical test chambers, including Temperature test chamber, altitude simulation test chamber, battery crush tester, short circuit battery test chamber, thermal abuse tester, drop tester, shock tester, vibration test system, etc.


    DGBELL lithium battery test chamber supplier is working with many global enterprises, such as global smartphone companies, global battery manufacturers, EV manufacturers, Third-party Detection Institutions, etc. We provide reliable battery test equipments to our customers, ensure they deliver the high safety and stability performance batteries to the market.
